Catadioptric Telescopes for Astrophotography: Setup Guide
Yes, you can absolutely do astrophotography with a catadioptric telescope — and for the Moon and planets, a "cat" is one of the best tools a beginner can own. Catadioptric telescopes (Schmidt-Cassegrains and Maksutov-Cassegrains) fold a very long focal length into a short, portable tube, which gives you the high magnification that planetary and lunar imaging love. With the right mount, camera, and a couple of key adapters, a compact catadioptric can capture Saturn's rings, craters along the Moon's terminator, and brighter deep-sky objects right from your backyard.
Catadioptric astrophotography has a reputation for being complicated, but most of that comes from picking the wrong target for your setup. Once you understand what these scopes are built to do, the path from "night sky" to "saved image" gets a lot clearer. This guide walks you through how catadioptrics behave on camera, what gear you actually need, and how to capture your first shots.
What makes a catadioptric telescope different for astrophotography?
A catadioptric telescope uses both a lens (the front corrector plate) and mirrors to bend light back and forth inside the tube. That folded light path packs a long focal length — often 1,500mm or more — into a tube barely a foot long. If you're new to how the optics compare, our guide on what a catadioptric telescope is (SCT vs. Maksutov) is the perfect primer.
For imaging, two numbers matter most: focal length and focal ratio (the f/number). Catadioptrics tend to have long focal lengths and "slow" focal ratios — typically around f/10 for a Schmidt-Cassegrain and f/12–f/15 for a Maksutov-Cassegrain. A long focal length gives you a large, magnified image scale, which is exactly what you want for planets and the Moon. A slow focal ratio means each pixel gathers light more slowly, which is why faint, wide deep-sky objects are the harder target for these scopes.
| Feature | Schmidt-Cassegrain (SCT) | Maksutov-Cassegrain (Mak) |
|---|---|---|
| Typical focal ratio | ~f/10 | ~f/12–f/15 |
| Best imaging targets | Planets, Moon, small deep-sky | Planets, Moon, double stars |
| Portability | Compact | Very compact |
| Deep-sky friendliness | Better with a focal reducer | Limited (very slow) |
You can browse the full range in our catadioptric telescopes collection to see how SCTs and Maks stack up.
What kind of astrophotography are catadioptrics best for?
The honest answer for beginners: start with the Moon and planets. These are bright targets that reward long focal length, and you can capture them even under light-polluted city skies.
- Planetary imaging — Jupiter, Saturn, Mars, and Venus. You shoot short video clips and stack the sharpest frames. A catadioptric's magnification is a huge advantage here.
- Lunar imaging — craters, mountain ranges, and the shadow line (terminator) show incredible detail. Great for smartphone shots too.
- Small, bright deep-sky objects — globular clusters, planetary nebulae, and compact galaxies suit the narrow field of view, especially with a focal reducer.
- Wide, faint deep-sky objects — large nebulae are the toughest match for a slow, long scope. A short refractor is usually the better tool for those.

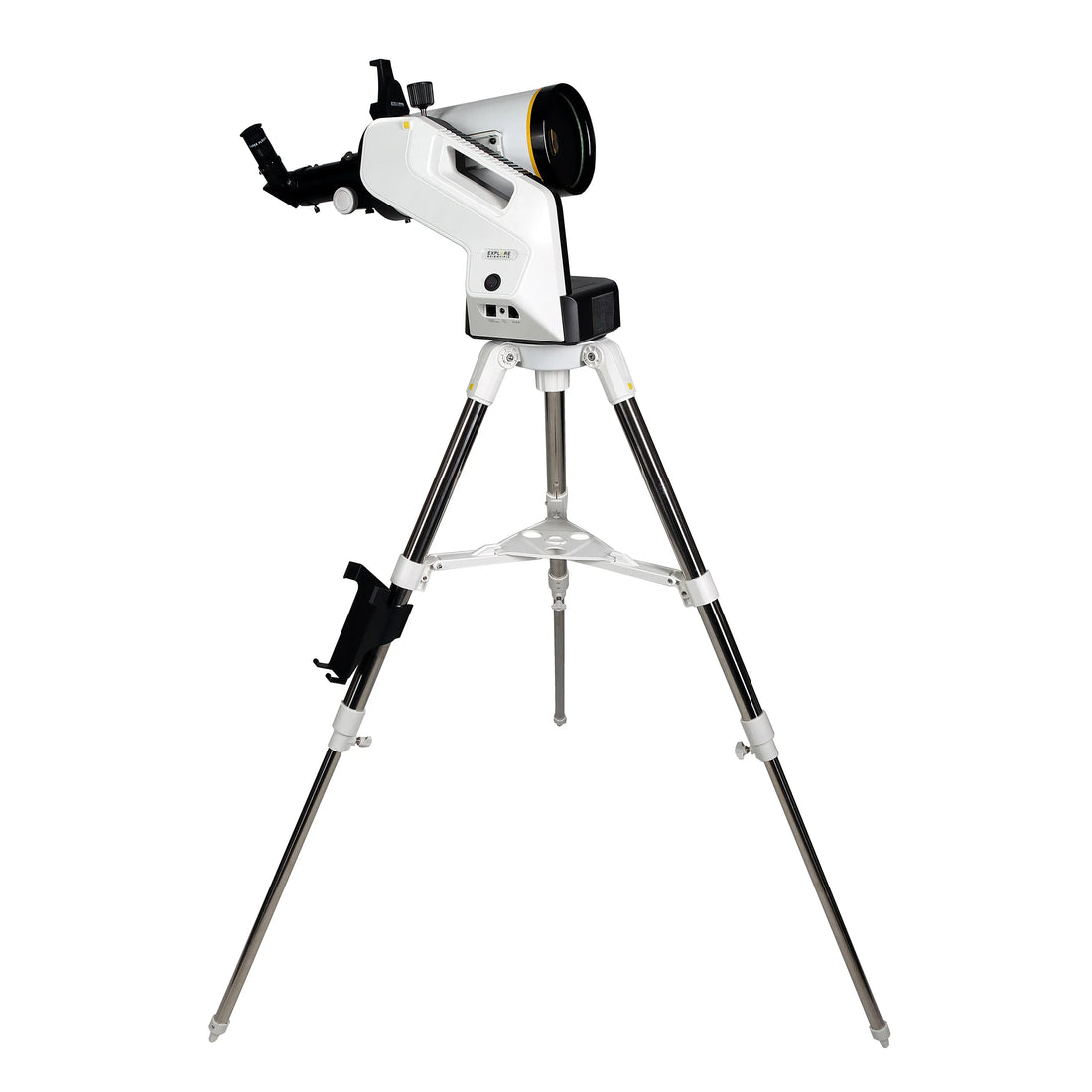

A motorized GoTo catadioptric like the Explore Scientific Sidara Pro 127mm Maksutov-Cassegrain is a strong starting point: the GoTo mount finds and tracks your target automatically, which takes a lot of the frustration out of centering tiny, high-magnification objects. If you want a more budget-friendly, grab-and-go option for lunar and planetary shots, the compact SVBONY MK90 Maksutov is an easy entry point.
What gear do you need for a catadioptric astrophotography setup?
Beyond the telescope itself, a workable setup comes down to a few core pieces. You don't need all of them on night one — build up as you go.
- A tracking mount. This is the single most important piece. For planetary and lunar work, a GoTo alt-azimuth mount is fine. For longer deep-sky exposures, you'll want an equatorial mount (or an SCT on an equatorial wedge) so the stars don't rotate in your frame.
- A camera. For planets, a high-frame-rate planetary camera works best. For the Moon and brighter objects, a DSLR/mirrorless or a dedicated astronomy camera both work well.
- A camera adapter. To attach a DSLR you'll need a T-ring matched to your camera brand, like the Explore Scientific T-2 ring for Nikon DSLR. Our guide to T-rings and camera adapters explains how the connection works.
- A focal reducer (optional but powerful). A reducer such as a 0.63x lowers a Schmidt-Cassegrain from f/10 to about f/6.3, widening the field and shortening exposure times — a big help for deep-sky imaging.
- Focus and dew control. A Bahtinov mask makes sharp focus repeatable, and a dew shield or heater keeps the front corrector plate from fogging up.
You'll find cameras, adapters, reducers, and more in our astronomy imaging & astrophotography collection and the astronomy cameras & accessories collection.
How do you capture your first images?
- Cool down and collimate. Let the scope sit outside for 30–60 minutes to reach the outside temperature. Check collimation on an SCT if stars don't focus to clean points.
- Align your mount. Run your GoTo alignment, or polar-align an equatorial mount so tracking is accurate.
- Focus carefully. Use a bright star and a Bahtinov mask to nail focus — blurry focus is the number-one ruiner of otherwise good shots.
- Shoot for the target. For planets, record short video clips (a minute or two). For the Moon or deep-sky, take a series of still frames.
- Stack and process. Free software like AutoStakkert! and RegiStax stacks your best planetary frames into one sharp image, then lets you sharpen the detail.
Common beginner mistakes with catadioptric astrophotography
- Chasing faint nebulae first. Start with the Moon and planets, where a catadioptric shines, and build skill before tackling dim targets.
- Skimping on the mount. A shaky or untracked mount will blur every long exposure no matter how good the optics are.
- Ignoring dew. An exposed corrector plate fogs quickly on cool nights — use a dew shield.
- Overlooking focus. At long focal lengths, even a tiny focus error is obvious. Take your time.
Frequently asked questions
Can you do deep-sky astrophotography with a catadioptric telescope?
Yes, especially on smaller, brighter objects like globular clusters and compact galaxies. Adding a focal reducer and using a good equatorial mount with tracking makes deep-sky imaging much more practical. Large, faint nebulae are still easier with a short, fast refractor.
Do I need an equatorial mount for catadioptric astrophotography?
Not for planetary and lunar imaging — a GoTo alt-azimuth mount tracks well enough for the short exposures those targets need. For longer deep-sky exposures you'll want an equatorial mount (or an SCT on a wedge) to avoid field rotation.
What's the best catadioptric telescope for a beginner astrophotographer?
A 5-inch (127mm) Maksutov or Schmidt-Cassegrain on a stable GoTo mount is a great balance of reach, portability, and price. It gives you strong planetary and lunar performance while staying easy to set up.
Why do my planet images look blurry?
Usually it's focus, atmospheric turbulence ("seeing"), or too much magnification for the night's conditions. Nail focus with a Bahtinov mask, shoot when the air is steady, and stack many frames to average out the blur.
Can I use my regular DSLR camera?
Absolutely. You just need a T-ring for your camera brand to connect it to the telescope. A DSLR is a great way to start with lunar and brighter deep-sky imaging before investing in a dedicated astronomy camera.
Ready to start imaging? Explore our full lineup of catadioptric telescopes and find the compact, high-magnification scope that fits your first astrophotography setup.
